Why Does the Jeep 4.0L Cylinder Head Crack? The 0331 Casting Story

The Short Answer

If your Jeep 4.0L inline-six is overheating, losing coolant, or pushing white smoke out the exhaust, there's a good chance the cylinder head has cracked. And if your Jeep was built between 2000 and 2006, it likely left the factory with a casting known as the 0331.

The 0331 has a reputation, and it's partly earned: the casting is less forgiving of heat than the ones that came before it. But here's the part that gets lost in forum threads. A healthy 0331 running at a healthy temperature does not crack. These heads crack when they're asked to live in an engine that's already running hotter than it should. Fix the heat, and the head is a perfectly good part.

At Titan Engines, we rebuild and sell 0331 heads every week. Here's what actually causes the failure, how to diagnose it, and how to make sure your replacement lasts.

What Is the 0331 Casting?

Jeep's 4.0L (242 cubic inch) inline-six is a legendary engine: durable, torquey, and famously long-lived when properly maintained. Chrysler produced it from 1987 through 2006, powering everything from the YJ Wrangler to the XJ Cherokee to the WJ Grand Cherokee.

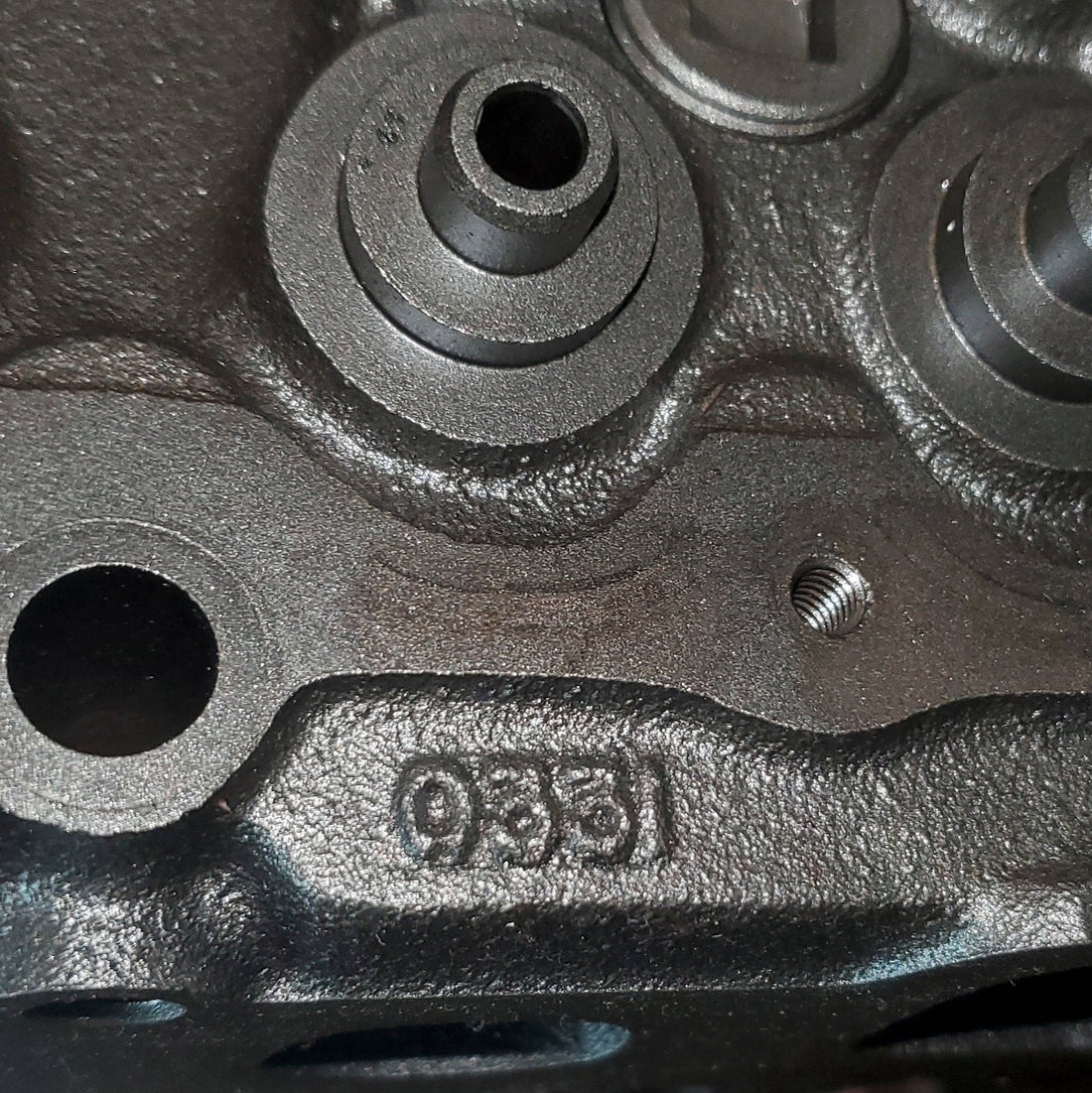

The casting number is stamped into the head itself, visible on the driver's side. The 0331 was introduced around 2000 and used through the end of production. Compared to earlier castings like the 0630, the 0331 has somewhat thinner material between the combustion chambers and slightly different coolant passage geometry. That gives it a narrower thermal safety margin, not a guarantee of failure.

Why It Cracks: Design Sensitivity Meets Real Heat

0331 cracks almost always appear in the same place: between cylinders 3 and 4, or between 4 and 5. Those are the hottest spots in the head and the areas with the least material.

Two things have to line up for a crack to form:

1. The design leaves less margin

• Thinner walls between the center combustion chambers mean less material to absorb thermal stress.
• Coolant flow is tighter around cylinders 3 through 5, so heat concentrates there under load.

2. The engine is running too hot in the first place

This is the part that actually kills heads, and it's the part you can control. In nearly every cracked 0331 we see, the cooling system had a problem first:

• A tired radiator. The factory plastic-tank radiators clog internally and lose efficiency long before they visibly leak.
• A failing fan clutch. This is the single most common overlooked cause. A clutch that no longer locks up leaves you fine on the highway and cooking in traffic.
• A stuck or wrong-temperature thermostat.
• Old, depleted coolant that has lost its corrosion inhibitors and heat transfer capability.
• A water pump with eroded impeller vanes, moving far less coolant than it should.
• Air pockets from an improper bleed after a previous coolant service.
• Lean running or ignition timing issues that raise combustion chamber temperatures.

Any of these pushes the head past its comfortable operating range. Repeated heat cycling at elevated temperature, or one serious overheat event, is what initiates the crack. The casting design determines how much abuse the head can take before it gives. It doesn't cause the abuse.

Symptoms of a Cracked 0331 Head

• White or sweet-smelling exhaust smoke (coolant burning in the combustion chambers)
• Coolant loss with no visible external leak
• Overheating, especially at idle or in stop-and-go traffic
• Milky oil on the dipstick or under the oil cap
• Rough idle or misfires on cylinders 3 through 5
• Bubbling or pressure in the coolant reservoir

A combustion leak test, using a block tester on the coolant reservoir, confirms combustion gases in the coolant, which points to either a cracked head or a failed head gasket. Pull the head to tell them apart.

Repair Options: What Are Your Choices?

Option 1: Replace the Head

If the block is sound and the bottom end has reasonable miles, a remanufactured cylinder head is the most cost-effective fix by a wide margin. A properly remanufactured 0331 is not the same part that failed on you: the core is pressure tested to find any existing cracks, the deck is resurfaced flat, valve seats are cut fresh, and worn guides and valves are replaced. You're getting a head that's verified sound and machined back to spec.

The 0331 also flows well and is a direct fit for 2000–2006 applications, with no accessory or sensor relocation, no fabrication, and no surprises.

Option 2: Full Remanufactured Engine

If the engine has high mileage, suffered a prolonged or severe overheat, or shows signs of bore wear, oil consumption, or bearing noise, a remanufactured long block is the better investment. A bad overheat doesn't just hurt the head. It can glaze cylinder walls, cook rings, and damage bearings. Rebuilding just the top end of an already-tired engine often means doing the job twice.

→ Browse Titan Engines' remanufactured Jeep 4.0L cylinder heads and Jeep 4.0L engines

The Most Important Step: Fix the Cooling System First

We can't say this strongly enough. Installing a new head into the same cooling system that killed the last one is the single most common reason people end up buying two heads.

Before or during the install, address:

• Radiator. Replace it if it's original or of unknown age. This is cheap insurance.
• Fan clutch. Replace it. They fail gradually and are almost never tested properly.
• Thermostat. New, with the correct temperature rating.
• Water pump. Inspect the impeller, and replace it if there's any erosion or play in the shaft.
• Hoses and radiator cap. A cap that won't hold pressure lowers the coolant's boiling point.
• Fresh coolant, properly bled. The 4.0L is sensitive to trapped air.

Installation Notes

• Use a quality multi-layer steel (MLS) head gasket.
• Follow the factory torque sequence and steps precisely. Don't guess.
• ARP head studs are worth the money if the budget allows; they hold clamping load more consistently through heat cycles.
• Verify the block deck is clean and flat before the new head goes on.
• Bleed the cooling system thoroughly and watch temps closely for the first few hundred miles.

The Bottom Line

The 0331 is a heat-sensitive casting, not a defective one. It cracks when an engine has been running hotter than it should, and the overwhelming majority of the time, that heat traces back to a cooling system component that was overdue for replacement.

Put a properly remanufactured, pressure-tested head on a healthy cooling system and there's no reason your 4.0L shouldn't deliver another 150,000+ trail-ready miles.

Not sure whether you need a head or a long block? Contact the Titan Engines team and tell us your symptoms and mileage, and we'll help you spec the right part.
