DSS Racing Forged Pistons with Custom Rings & Prefitted Eagle Forged Connecting Rods

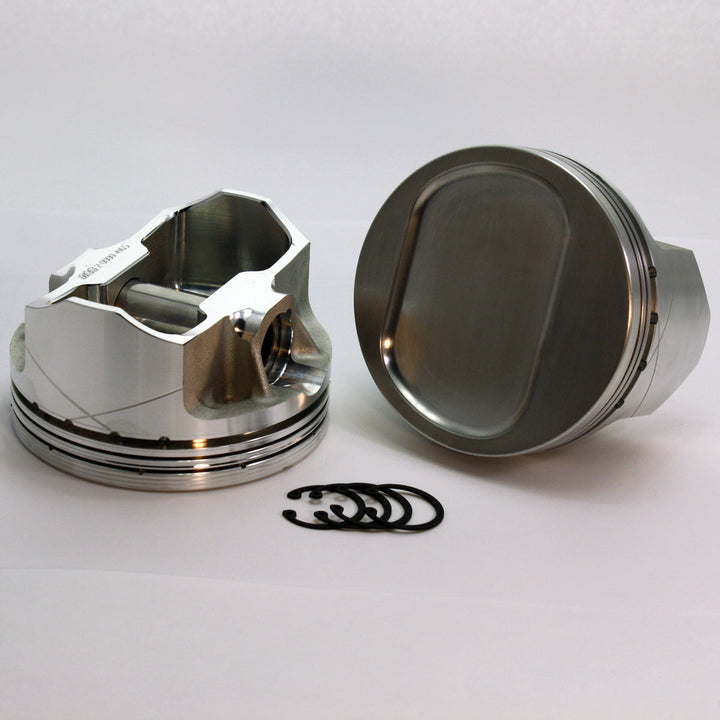

Forged and machined with premium aircraft-quality 4032 alloy, the pistons are a great choice for naturally aspirated, nitrous or boosted engines with the added strength from the internal gussets. Additional CNC milling removes material in non-critical areas to achieve a lighter weight for the perfect balance of strength, power, and longevity.

The patented X grove extends the life of the cylinders, pistons, and rings. On the down stroke debris and excess oil are swept into the X grove and exit the piston's oil drain back holes. This keeps the clearance between the piston and the cylinder wall cleaner and reduces oil load on the oil ring. On the up stroke when fuel washes down normal wear and break-in debris are swept into the X grove but exit into the oil pan and this maintains an oil film on the most critical parts of the skirts and cylinder walls. The pistons include custom rings. For optimized ring seal at the upper RPM ranges horizontal gas ports were added.

• Engine Brand: Jeep
• Engine Family: AMC/Jeep 6 Cyl.
• Engine Size: 4.0
• With/Without Rings: Includes Rings
• Ring Width: 1.5/1.5/4MM
• Compression Height: 1.592
• Pin Diameter: 0.931
• Connecting Rod Length: 6.125
• Crankshaft Stroke: 3.440
• Piston Series: 1 - FX 4032 Alloy
• Alloy: 4032 Alloy
• Cylinder Head: Jeep
• TDC Assembly Height: 9.437

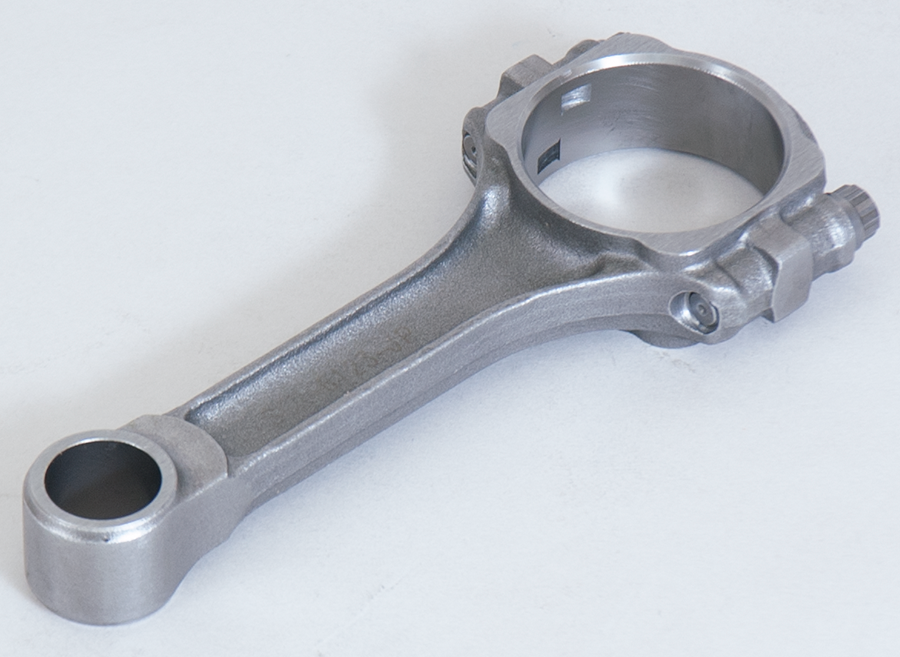

"SIR" FORGED 5140 STEEL I-BEAM RODS

Highlights:

• Bolts: 3/8" ARP 8740
• Material: Forged 5140 Steel
• Center to Center Length: 6.123"
• Pin Size: 0.931
• Pin End Width: 1.06
• Rod Journal: 2.095
• Housing Bore: 2.208
• Big End Width: 1.06
• For press-fit piston pins
• Typical Weight: 605g

Forged 5140 steel I-Beam connecting rods are an upgrade from O.E. rods and feature a shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for naturally-aspirated, pump gas, road car use.
